Casa ProdutosGPON ONU ONTÁRIOGPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band
GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band
GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band
contacto

GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band

Quantidade de ordem mínima : 10 Preço : Negociatable
Detalhes da embalagem : CAIXA Tempo de entrega : 15 dias
Termos de pagamento : L/C, T/T Habilidade da fonte : 20000pcs/Week
Lugar de origem: guangdong Marca: GPON EPON ONT
Certificação: CE ROHS Anatel Número do modelo: F663NV3A

Informação detalhada
Uso: FTTX tempo da garantia: 1year
Rede: wifi Cor: Branco

Descrição de produto

F663NV3a FTTH is a single-frequency and economical smart gateway specially built by ZTE for China Mobile. This model uses the new-generation self-developed chip, loads the intelligent operating system, and supports dynamic loading of plug-ins, and givess users with abundant home services. The stable wireless performance provides smooth Wi-Fi for the home. Its unique open application platform creates an operator-dominated and user-centered smart home application ecosystem.GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band 0GPON XPON ONU ONT F663NV3A 1GE+1FE+CATV+1POTS VOIP 2.4G 5Dbi AC WiFi ONU Single Band 1





Technical items Descriptions
Brand ZTE
Model ZXHN F663NV3a
Fiber interface SC/UPC

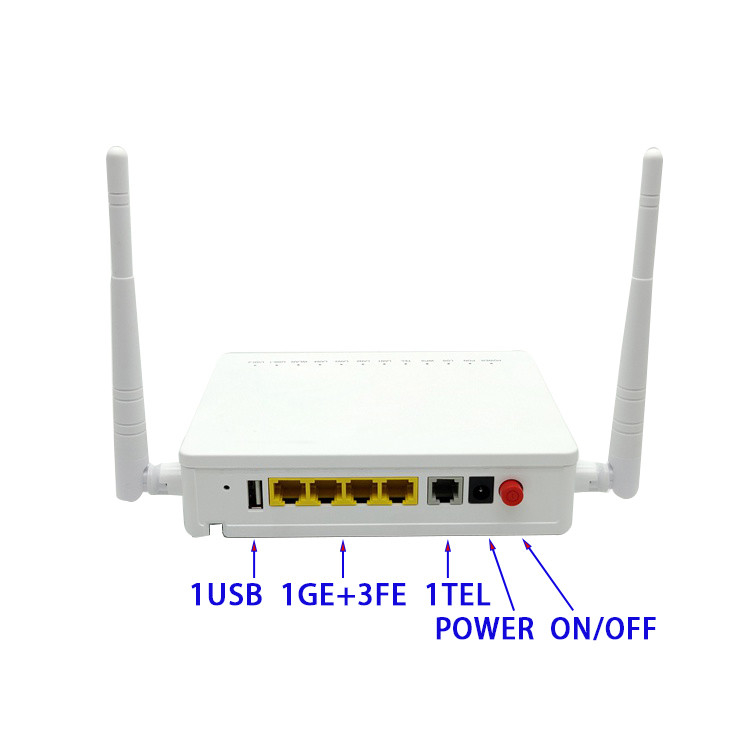

Fiber port 1 GPON interface, 1GE+3FE+1POT+1USB+WIFI,SC single-mode,
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Voice protocol SIP, H.248
RX sensitivity <-27dBm (1490nm)
WLAN IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI,external antenna
Net weight ≤0.6Kg
Configuration method NMS, Web, or TR069
Power ≤8W
DC power Adapter input: 100-240 V AC, 50 – 60 Hz ;
Adapter output: 11 – 14 V DC, 1 A
Button Reset, power
Operation Working temperature: -0-+40℃
working humidity:5-95%(non-condensation)
Dimension 250*220*65mm(length*width*height)
L2 forwarding capability Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
