Placa do general relação de H901CIUA para Huawei Ma5800 Olt

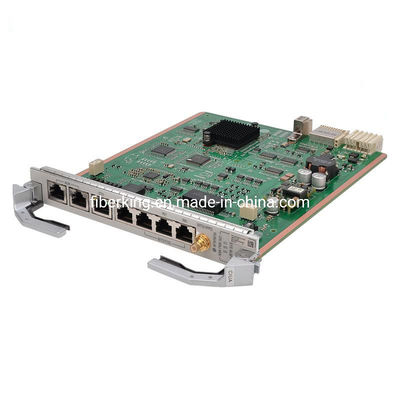

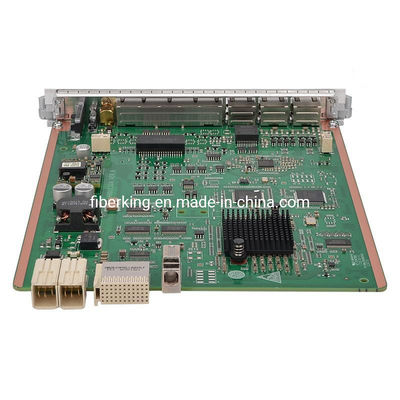

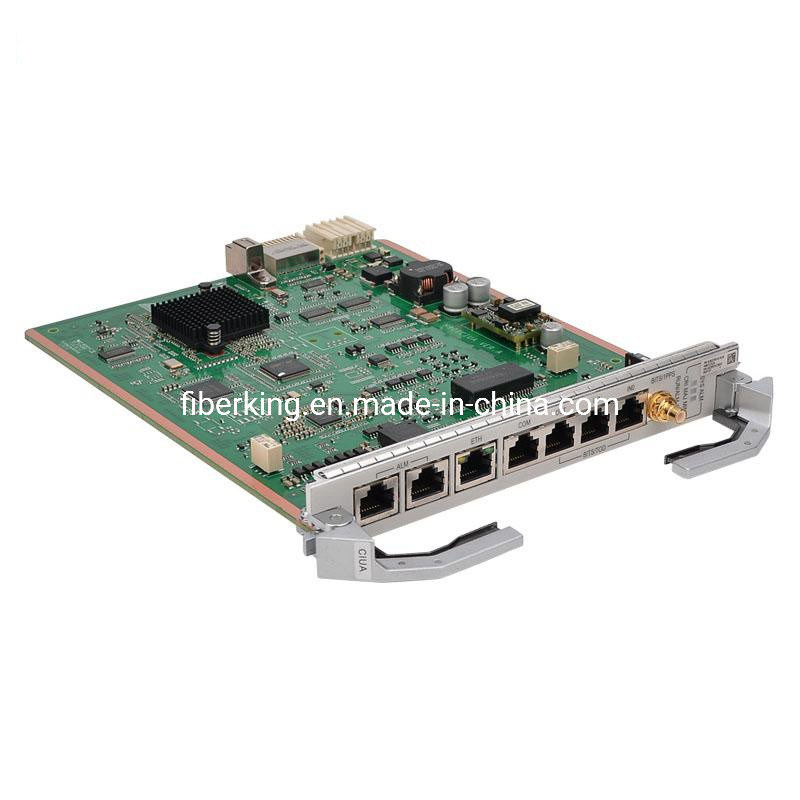

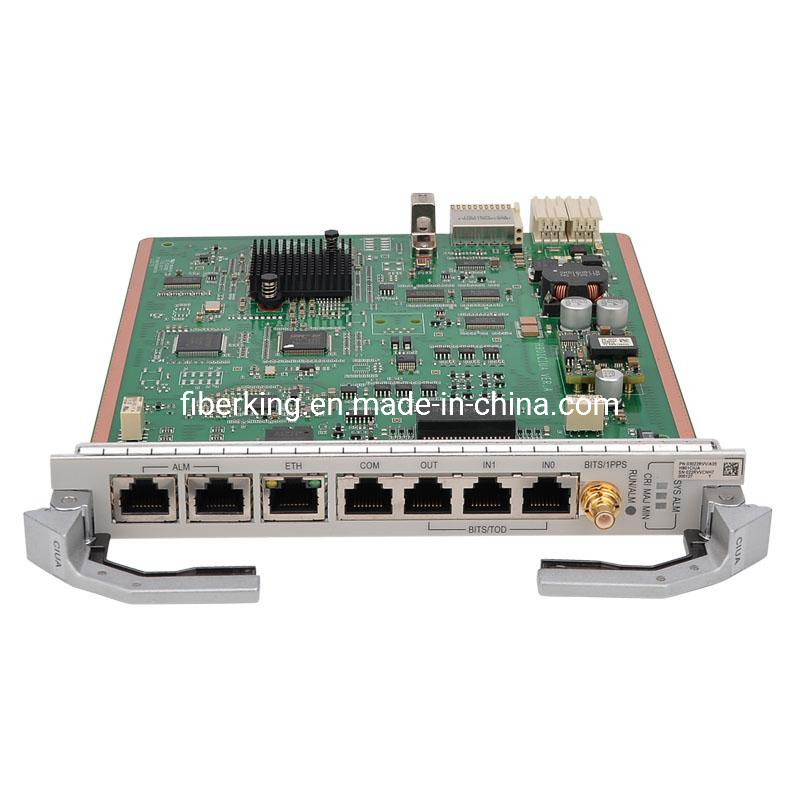

The H901CIUA board is a General Interface Board. It provides the input and output clock source for the system and supports functions such as input and output of alarm digital parameters.

Feature and Specifications

The H901CIUA board supports the following functions:
Seven inputs of alarm digital parameters and one output of digital controlling parameters
Two inputs of 2 Mbit/s or 2 MHz BITS clock signals
Two inputs of 1 PPS+TOD time signals
One output of 2 Mbit/s or 2 MHz clock signals
One output of 1PPS time signals
External monitoring Ethernet port to transparently transmit monitored data
RS485 port to transparently transmit data
Multiple working modes, such as tracing, holdover, and free-run

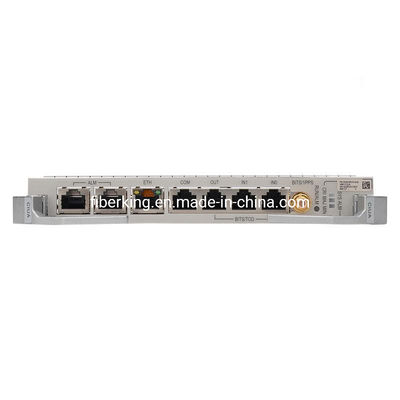

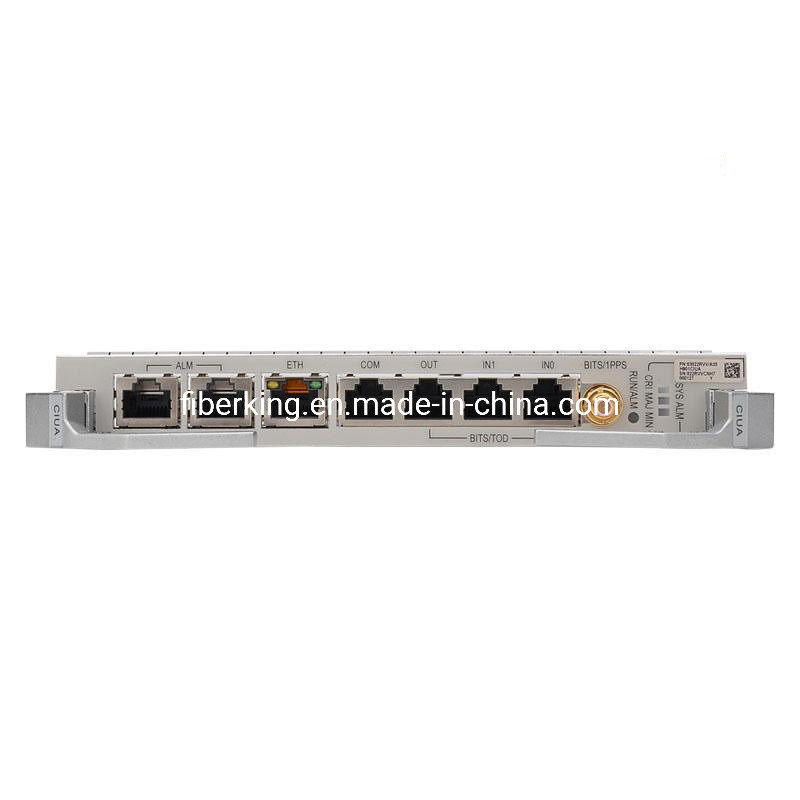

Front Panel Port

Indicator
